Description
- Provides deeper tissue penetration with its high frequency (4000 Hz) carrier waveform. The IF-4000 is more comfortable to use. Provides better relief than traditional electrotherapy devices. Instruction booklet for easy set-up in minutes.
- The IF-4000 Interferential Unit helps control pain and speeds the healing process by delivering small pulses of electrical current to an injury through electrodes that pass current through the skin and stimulate underlying nerves producing a mild, tingling sensation to provide relief from chronic and acute pain.
- Interferential is used for very localized areas where deep current for pain control or increased circulation is needed.
- IF 4000 Stimulator Technical Specifications:
- Carrier Frequency: 4000 Hz., fixed
- Interference Frequency: 4001-4150 Hz
- Difference Frequency: 1-150 Hz., adjustable
- Output Voltage: 0-16 volts (through 500 Ohms)
- Waveform: Symmetric bi-phasic square
- Pulse Width: 125 Microseconds for each phase
- Four Frequency Shift: Continuous, 1/1 abrupt, 8/8 abrupt, 10/10 ramped options
- Kit Contains:

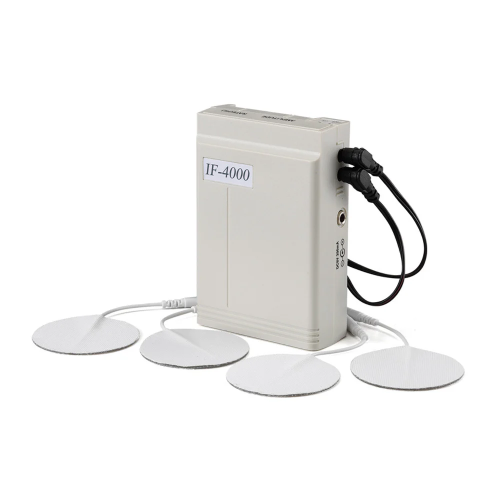

- 1 IF-4000 Stimulator
- Hard plastic carrying case.
- Two lead wires for use with a total of four electrodes.
- One package of self-adhesive electrodes.
- 9 Volt alkaline battery and A/C adaptor.
